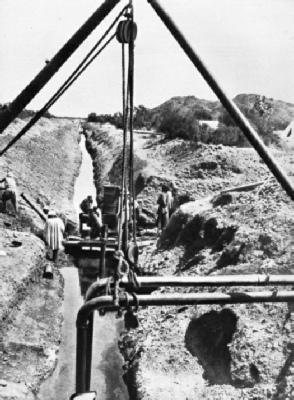

THE PROBLEM OF A WATER SUPPLY in the Sudan is met in a variety of ways. In addition to building barrages across the Blue Nile near Sennar and across the White Nile at Gebel Aulia, the Anglo-Egyptian Government has sunk numerous wells. The photograph shows a well and a pipe line trench at Khor-ar-Baat, near Port Sudan, on the Red Sea. The two wells which have been sunk have a yield of 3,000,000 gallons above present-day requirements.
Photogravure Supplement - 2
AT WORK ON THE SECOND REBUILDING of the Aswan Dam. The original work on the dam lasted from February 1899 to June 1902, when the contractors finished the masonry work, about a year ahead of schedule. On December 10, 1902, the dam was formerly declared complete. The ever-increasing demand for more water in Egypt caused the Irrigation Department to enlarge the dam in 1902-7 and again in 1929-33.
Photogravure Supplement - 3

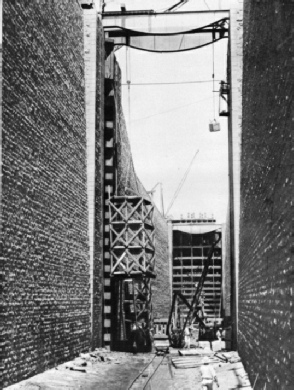

PART OF THE LOCK SYSTEM at the Aswan Dam. Men are working on Gate No. 2 and are preparing to lay the invert in the lock floor. There were four locks, and each was 263 feet long. The lock gates, of the Stoney type, were suspended from rollers by which they could be run into recesses at the sides of the lock.
